MChK-1 Roots and tuber crops peeling machine
Specifications
Machine type
—
stationary
Throughput rate per 1 hour of basic time, t
—
up to 1,0
Installed power of electric motors, kW, not more than
—
8,75
Overall dimensions, mm, not more than (length/width/height)
—
4200 х 2800 х 2800
Loading height, mm
—
2400
Weight, kg, not more than
—
2500

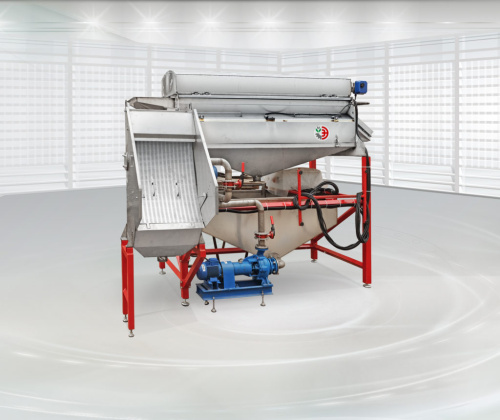

MChK-1 Roots and tuber crops peeling machine
The MChK-1 Roots and tuber crops peeling machine is designed for peeling the outer skin of roots and tuber crops (potatoes, carrots, beetroots, topinambur, etc.).
The produce outer skin is peeled in a peeling chamber configured as a horizontal reservoir accommodating eight shafts with abrasive coating applied.
The produce is fed by a rotating auger mounted along the peeling chamber.
As the produce moves, it is washed with strong water jets forced via a system of nozzles.
At the produce outlet, the peeling efficiency is not less than 98%.
Specifications
|
Machine type
|
stationary |
|
Throughput rate per 1 hour of basic time, t
|
up to 1,0 |
|
Installed power of electric motors, kW, not more than
|
8,75 |
|
Overall dimensions, mm, not more than (length/width/height)
|
4200 х 2800 х 2800 |
|
Loading height, mm
|
2400 |
|
Weight, kg, not more than
|
2500 |
|
Number of abrasive shafts, pcs
|
8 |
|
Diameter of abrasive shafts, mm, not more than
|
110 |
|
Auger diameter, mm, not more than
|
640 |
|
Current type
|
Alternating |
