OLL-1 Flax strip turner
Specifications
Machine type
—
self-propelled
Overall dimensions, mm, not more than (length/width/height)
—
4900 / 2150 / 3010
Drive
—
hydrostatic
Количество оборачиваемых лент, шт.
—
1
Ширина лент оборачиваTurning conveyor belt width, mm, not less than ющего транспортера, мм, не менее
—
160
Spreading conveyor belt width, mm, not less than
—
100

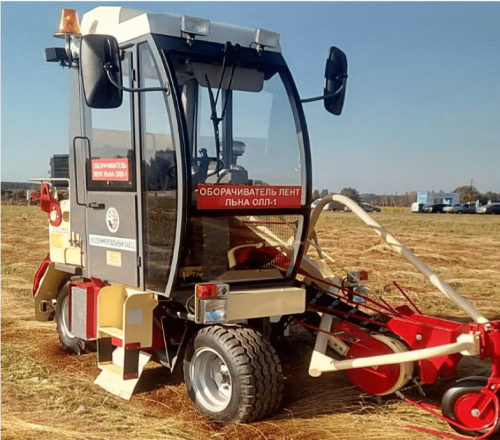

OLL-1 Flax strip turner
The OLL-1 Flax strip turner is designed for turning the flax straw strips laid out by the flax harvester in the process of retting flax straw to preserve its quality, as well as the retted straw strip before harvesting to accelerate its natural drying. The machine is equipped with an air conditioned one-man cab. DEUTZ F4 L 2011 DIESEL is mounted on the turner.
Specifications
|
Machine type
|
self-propelled |
|
Overall dimensions, mm, not more than (length/width/height)
|
4900 / 2150 / 3010 |
|
Drive
|
hydrostatic |
|
Количество оборачиваемых лент, шт.
|
1 |
|
Ширина лент оборачиваTurning conveyor belt width, mm, not less than ющего транспортера, мм, не менее
|
160 |
|
Spreading conveyor belt width, mm, not less than
|
100 |
|
Operating speed, km/h
|
from 9 to 11 |
|
Throughput rate per hour (shift time-shift time), ha/h, not less than
|
0,84-1,33 |
|
Throughput rate per hour (operating time), ha/h, not less than
|
0,83-1,31 |
|
Fuel tank capacity, l, not less than
|
180 |
|
Agrotechnical parameters
|
. |
|
pick-up cleanliness, %, not less than
|
99 |
|
strip turning degree, %, not less than
|
99 |
|
increase in the angle of deviation of stems in the strip, %, not more than
|
5 |
